Stainless Steel Edge Profile

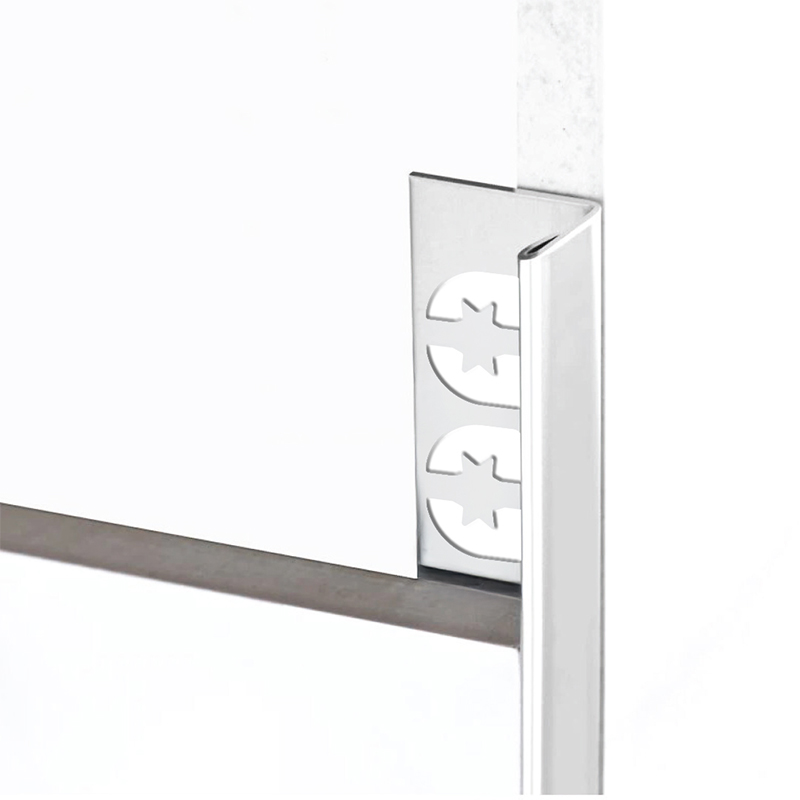

Edge profile is specially designed for the floor which gives elegant look to your home, offices or showrooms etc. It can be used as a separator between tile to natural stone / wood or at tiles termination points. It will protect the tile edges from breakage. It is available in different grades such as; Stainless Steel 304/316 and finishes like; Mirror & Brushed (Satin) with multiple sizes.

Download Technical Data

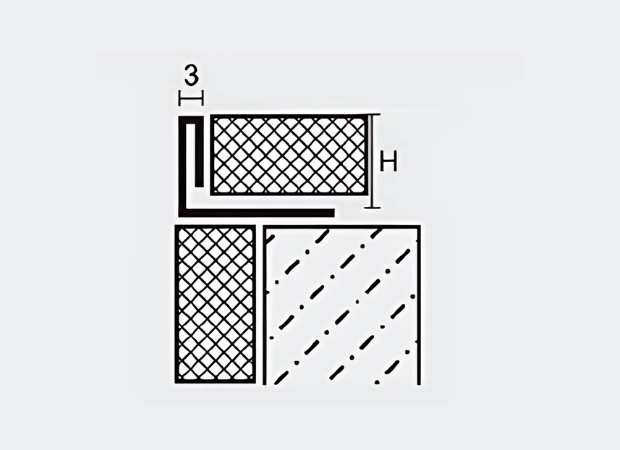

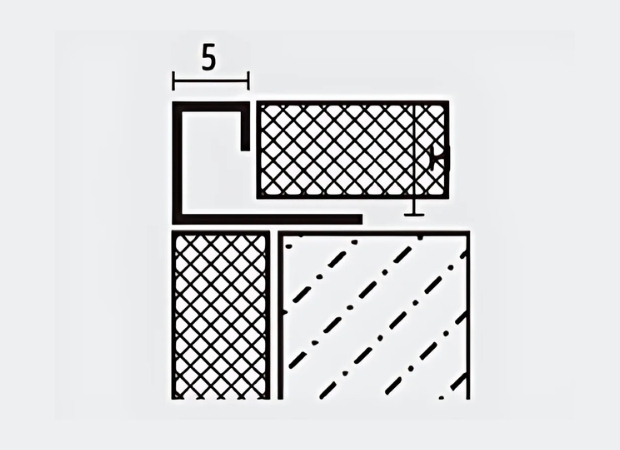

Grade
Code
H(mm)
L(mm)
SS 304 EDGE MIRROR FINISH DP-SS4-L5/M 10 10 2.7
DDP-SS4-L5/M 125 12.5 2.7
DDP-SS4-L5/M 15 15 2.7
SS 304 EDGE MIRROR FINISH DP-SS4-L3/M 10 10 2.7
DP-SS4-L3/M 125 12.5 2.7
DP-SS4-L3/M 15 15 2.7
SS 304 EDGE BRUSHED FINISH DP-SS4-L5/B 10 10 2.7
DP-SS4-L5/B 125 12.5 2.7
DP-SS4-L5/B 15 15 2.7
SS 304 EDGE BRUSHED FINISH DP-SS4-L3/B 10 10 2.7
DP-SS4-L3/B 125 12.5 2.7
DP-SS4-L3/B 15 15 2.7
Grade
Code
H(mm)
L(mm)
SS 316 EDGE MIRROR FINISH DP-SS6-L5/M 10 10 2.7
DDP-SS6-L5/M 125 12.5 2.7
DDP-SS6-L5/M 15 15 2.7
SS 316 EDGE MIRROR FINISH DP-SS6-L3/M 10 10 2.7
DP-SS6-L3/M 125 12.5 2.7
DP-SS6-L3/M 15 15 2.7
SS 316 EDGE BRUSHED FINISH DP-SS6-L5/B 10 10 2.7
DP-SS6-L5/B 125 12.5 2.7
DP-SS6-L5/B 15 15 2.7
SS 316 EDGE BRUSHED FINISH DP-SS6-L3/B 10 10 2.7
DP-SS6-L3/B 125 12.5 2.7
DP-SS6-L3/B 15 15 2.7
